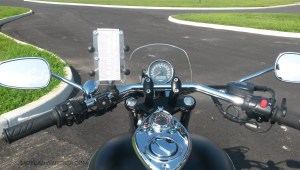

The past few weeks I’ve been putting several rides together for the different groups I hang out with. The other day it dawned on me that I could really use a rally roadbook reader. MotoADVR_ReaderTest3What’s a roadbook reader you ask? I imagine many of you are familiar with the Baja 1000, or the Dakar Rally (no longer run between Paris and Dakar, but that’s a different topic). Many such “rally” races are run without modern GPS devices, just a map, a compass, and a trip odometer. Don’t let me fool you, a roadbook reader is more advanced than directions and a trip odometer, but it’s essentially a list of directions written on a long strip of paper than can be scrolled up and down while riding (more on that here). While I admit I would, someday, feasibly pay to compete in the Alcan 5000 rally (no, not on this bike…), I’m currently in no condition to need a true $500+ Rally Roadbook Reader. Most of the rides I put together are under 4 hours of riding time, and typically not more than 200 miles. That being said, turn by turn directions are pretty critical, considering I’m trying to link together as many of the twisties as I can find between the starting point, and whatever lunch destination I can find.

Several of my friends have suggested I just download an app or purchase a GPS unit. This is probably a very reasonable plan for some riders, however I have a couple objections; for one, I’m cheap! I understand that motorcycle GPS units are better designed to handle the unique weather conditions motorcyclists experience, but the premium over standard GPS units is steep enough to keep me from spending the cash. At the same time I am concerned about the waypoint limitations of affordable GPS units, it’s not unheard of for me to have 15-20 major turns in a one hour stretch of riding, I’m not sure if I can store that many waypoints (admittedly I’ve not done a much research). I have in the past used my phone as a GPS unit, but typically only when I’m taking the fastest route available. The downside to using my phone, even if I did purchase a waypoint application, is that I like to ride in places that don’t get cellular service. Folks have said that their phone GPS still works even if they don’t have cell service; I’ve not always been so lucky. Moreover if you’re wandering around the backwoods of eastern Kentucky, GPS isn’t very reliable.

MotoADVR_TankBagSo, what do I normally do? I surf Google maps, write down turn-by-turn directions, including mileage, stick it on my tank bag, reset my trip odometer at each stop, and just turn when the mileage matches the roadway. Mind you, I don’t have the world’s best tank bag, but either way, I find myself looking down to check directions, and I really don’t like taking my eyes of the road for that long.

Obviously neither alternative is currently working so well for me, so I need a more “advanced” solution. MotoADVR_DrawingBoardWhile surfing the web I was impressed that there are actually two “affordable” mini-roadmap readers (Touratech and Moose racing), however I still wanted to branch out on my own and make something. My good buddy Jeff reminded me that I have a way with acrylic; it seemed to make sense that I could cut out a couple pieces, put my directions inside, screw them together, then use the RAM mount on my handlebars. The lightbulb immediately went off and I hit the drawing board.

DCIM100GOPROYou’ve probably seen photos of my RAM X-grip by now. The X-grip has been really handy when I do use my phone as a GPS, especially on long trips. I try to avoid messing with the screen while riding, but it has made taking photos from the roadside really easy. At any rate, the X-grip has a maximum opening that isn’t far from my cell phone overall dimensions. I got on the RAM website and looked up the max dimensions to make sure my new navigational contraption would fit. This is obviously the prototype, so I stuck to the K.I.S.S. principle, modeling this “reader” after my phone.

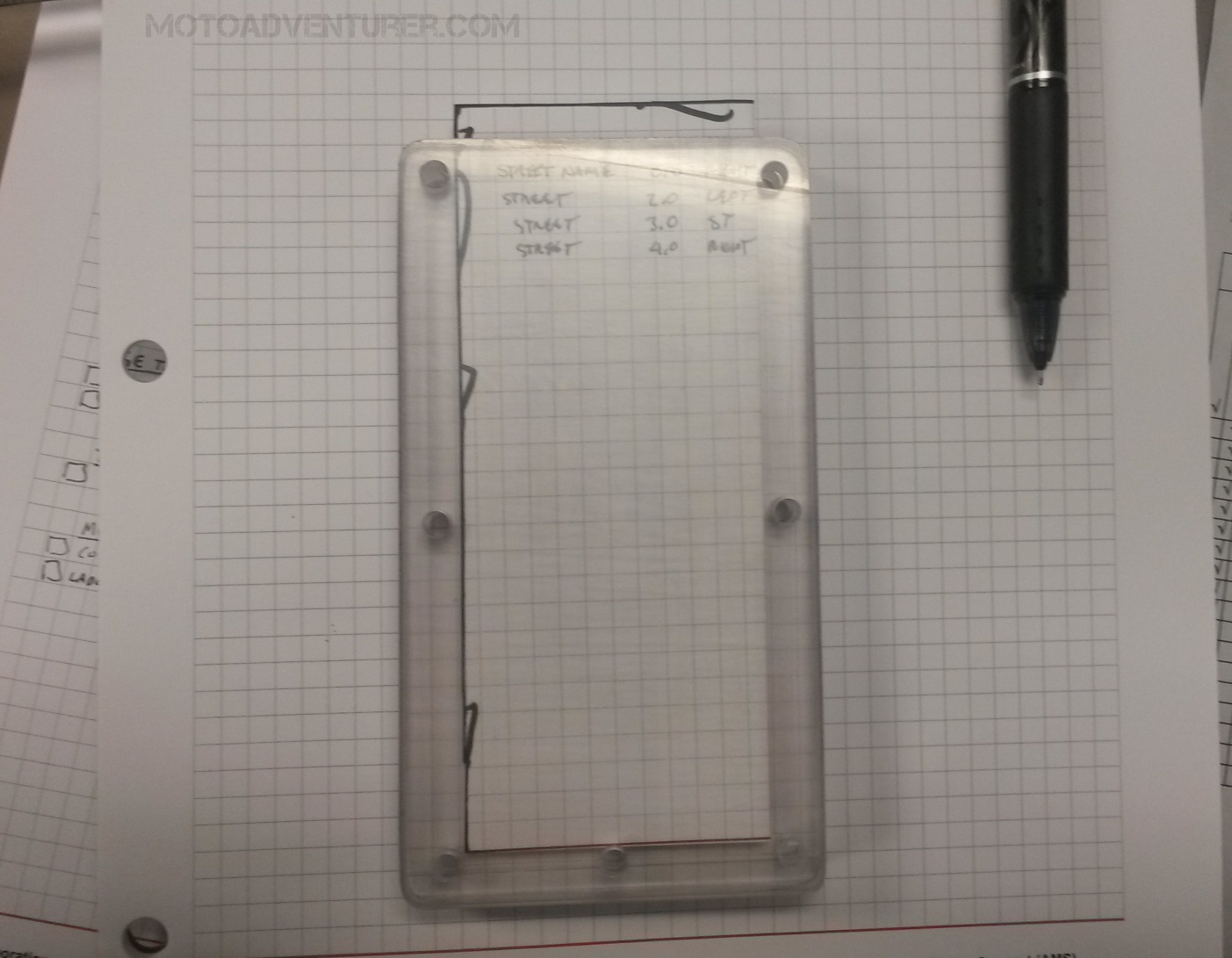

After a few minutes on the band saw, the belt sander, and the drill press, I had a good prototype shell in hand. MotoADVR_DrawingBoard2I had the acrylic lying around from scraps left in the trash at the office, so at this point I was only out the cost of my lunch break. The scrap pieces of acrylic aren’t pristine by any means, but still clear enough I can read through them from three feet away. After spending $2 at the hardware store I was ready for final assembly. I was actually disappointed in the bolt options available off-the-shelf at the big box store; typically I like to use Allen wrench cap screws, however I wasn’t able to find the sizes I needed to fit the holes (I copied the same hole sizes from my flyscreen). So, using traditional Philips screws, I needed to countersink the mounting holes on the top side. This is much easier to do in the shop than your kitchen; when working with acrylic, speed is typically your friend, but it’s easier said than done (the drill bit grabbed the acrylic… it was almost over right there…). In any case, I placed a skinny washer between each piece of acrylic, tightened down the bolts, and inserted a test piece of paper. The fit was a little snug, but it was right where I wanted it.

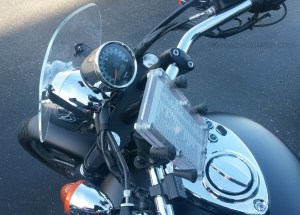

I couple concerns I had initially were length of the unit,MotoADVR_ReaderTest2 and whether or not the wind would pull my precious directions out of the reader. I modified a few of the Excel files I’d saved from previous routes and shrunk them to fit in the reader; as it turns out, even the longer legs fit inside, and I can still read the directions quite clearly. To test my second fear I rode to work on the freeway with my draft directions in place; the wind wasn’t successful in stealing my route card.

I have a short ride planned this weekend, so this will be the first real test for my “Old-fashioned” Navigation System, but the gears are already turning for the next generation. Given more time and better tools, MotoADVR_ReaderTest1I could feasibly see myself splurging on a new RAM Mount ball to mount to the back of the reader. This would permit me to put larger, longer directions up on the bars (they make an iPad mount… but that’s just ridiculous!). My buddy Jeff had even suggested that I may want to look into mounting an LED strip along the sides, that way I could even navigate at night if needed. Lastly, while that Moose Racing kit is pretty cheap, I’m going to investigate ways to mount a scrolling system of some kind. While as of today, all of my route sheets are short enough to fit in the reader, I imagine a long route from Dayton to Deals Gap might be significant enough to splurge on a long route sheet.

Long term I imagine I will finally break down and purchase a high-end motorcycle GPS unit, but in the meantime, this is probably the best solution at hand. How do you navigate your more complicated routes?
